Quotation

Imagen

Model

Specification

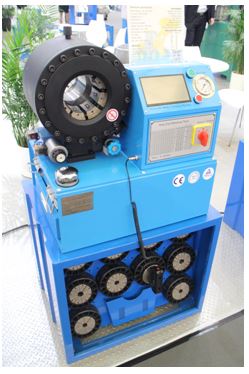

YJK-P16HP 1 inch Portable Crimping Machine

◆Crimp Capacity: 1SN 2SN

I.D. up to 1 inch / 25mm

1 braided wire: 1”

2 braided wire: 1”

◆Crimp force: 1175kN

◆Standard dies: 5 sets

◆Weight: 35kg

◆Size: 350×300×300 mm

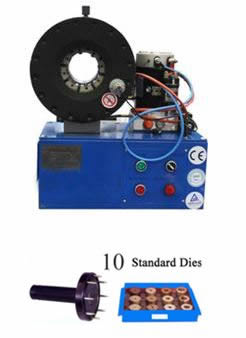

YJK-DC51 Mobile Vans 2 inch Crimping Machine

12V / 24v

◆Crimp Capacity: I.D. up to 2 inch / 51mm

1SN, 2SN, 4SP

2 braided wire: 2"

4 spiral wire: 1"

◆Crimp force: 2600kN

◆Standard dies: 10 sets

◆Voltage: DC 12v / 24v

◆Motor Power: 2.2kw

◆Weight: 135kg

◆Size: 450×300×550mm

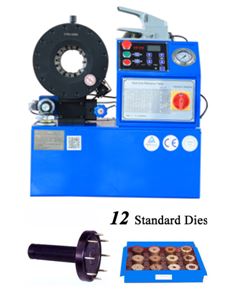

YJK-80 1¼ inch Crimping Machine

◆Crimp Capacity: 2SN, 4SP

I.D. up to 1¼ inch / 32mm

O.D. up to 80mm

2 braided wire: 1¼"

4 spiral wire: 1¼"

◆Crimp force: 3200kN

◆Voltage: 220v 1ph / 3ph

◆Motor Power: 3kw / 4kw

◆Standard dies: 12 sets

◆Foot pedal

◆Noise level: 65dB

◆Weight: 220kg

◆Size: 600×480×650mm

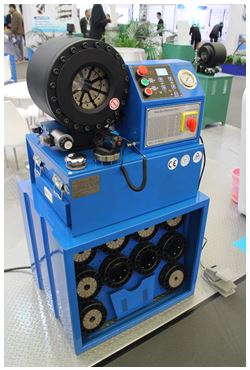

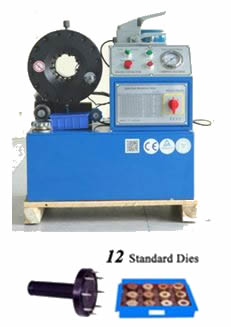

YJK-80

CNC

Digital Controlled

1¼ inch

Crimping

Machine

◆Crimp Capacity: 2SN, 4SP

I.D. up to 1¼ inch / 32mm

O.D. up to 80mm

2 braided wire: 1¼"

4 spiral wire: 1¼"

◆Crimp force: 3200kN

◆Voltage: 220v 1ph / 3ph

◆Motor Power: 3kw / 4kw

◆Standard Dies: 12 sets

◆Foot pedal

◆Noise level: 65dB

◆Weight: 220kg

◆Size: 600×480×650mm

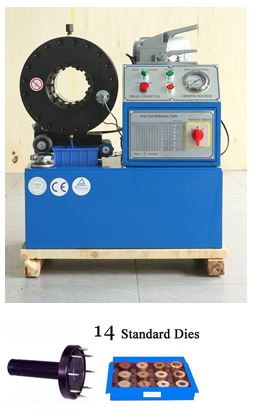

YJK-120

2 inch

Crimping

Machine

◆Crimp Capacity: 4SP 4SH

I.D. up to 2 inch / 51mm

2 braided wire: 2”

4 spiral wire: 2"

◆Crimp force: 3600kN

◆Voltage: 220v 1ph / 3ph

◆Motor Power: 3kw / 4kw

◆Standard Dies: 14 sets

◆Quick change tools

◆Foot pedal

◆Noise level:65dB

◆Weight: 240kg

◆Size: 600×480×700 mm

YJK-120

CNC

2 inch

Crimping

Machine

◆Crimp Capacity: 4SP 4SH

I.D. up to 2 inch / 51mm

2 braided wire: 2”

4 spiral wire: 2"

◆Crimp force: 3600kN

◆Voltage: 220v 1ph / 3ph

◆Motor Power: 3kw / 4kw

◆Standard Dies: 14 sets

◆Quick change tools

◆Foot pedal

◆Noise level: 65dB

◆Weight: 240kg

◆Size: 680×620×1300 mm

YJK-120X

2 inch

Crimping

Machine

◆Crimp Capacity: 4SP 4SH

I.D. up to 2 inch / 51mm

2 braided wire: 2”

4 spiral wire: 2"

◆Crimp force: 3600kN

◆Voltage: 220v 1ph / 3ph

◆Motor Power: 3kw / 4kw

◆Standard Dies: 14 sets

◆Quick change tools

◆Foot pedal

◆Noise level: 65dB

◆Weight: 240kg

◆Size: 680×620×1300 mm

Customized

Model

Crimping from 4 inch to 30inch

Used for big size industrial hose

QGJ-51

2 inch

Cutting

◆Cut capacity: Up to 2"

◆Voltage: 220v 1ph / 3ph

◆Motor Power: 3kw / 4kw

◆Cutting blade: 1 pcs

◆Weight: 60kg

◆Size: 650×600×580mm

BJJ-51

2 inch

Skiving

◆Skive Capacity: Up 2" / 51 mm

◆Power: 220v 1ph / 3ph

◆Central spindle: 10 pcs

◆Cutter: 2 pcs

◆Weight: 40kg

◆Size: 600×400×370 mm
